High Velocity Oxy-Fuel (HVOF) Spraying

High Velocity Oxy-Fuel (HVOF) thermal spraying involves the continuous, high-pressure combustion of a fuel-oxygen mixture within a water-cooled combustion chamber. The process accommodates a range of fuel types, including gaseous fuels (e.g., propane, ethylene, propylene, butane, acetylene, and hydrogen), liquid fuels (e.g., kerosene, paraffin, or isoparaffin-based formulations), as well as hybrid combinations thereof. The elevated pressure generated by the combustion reaction, combined with the convergent-divergent expansion nozzle geometry, produces a supersonic gas jet characterized by high particle velocities and controlled heat transfer to the feedstock material.

The feedstock material, typically in powder form, is introduced into the gas stream either axially through the combustion chamber or radially within the nozzle section. During transit to the substrate, the powder particles undergo simultaneous rapid acceleration and controlled heating, impacting the component surface with high kinetic energy and thermal input. This results in the formation of dense, high-cohesion coatings with superior microstructural properties.

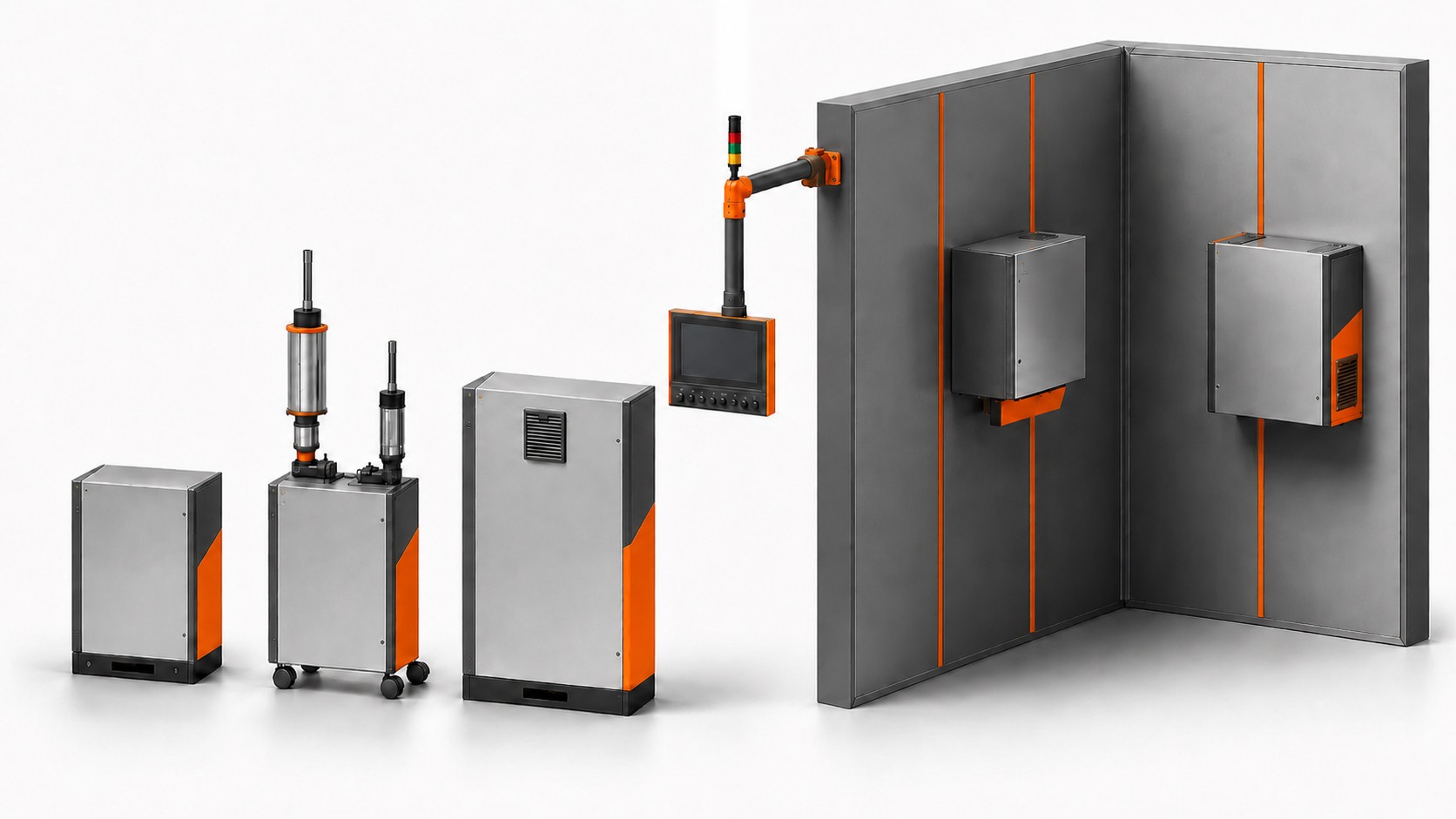

CTS2000 HVOF-GF / -LF System Platform

The CTS2000 HVOF-GF and -LF systems integrate advanced automation architectures based on Siemens TIA Portal or Mitsubishi GX Works engineering frameworks. The human-machine interface (HMI) is engineered for operational simplicity, utilizing an intuitive operator workflow that ensures high user acceptance from initial commissioning.

System construction adheres to rigorous industrial safety standards. Closed-loop process control is achieved through continuous parameter monitoring via high-precision sensor arrays and controllers, ensuring exceptional process stability and quality assurance for your coating applications. The Advanced Remote Interface facilitates comprehensive bidirectional data communication between the HVOF system and auxiliary robotic or multi-axis handling systems. The HVOF spray system is designed on a modular platform and is available in multiple configurations to meet varying production throughput and application requirements.

高速氧燃料微粒化(超音速)

高速氧燃料热雾化(超音速火焰)涉及持续燃烧的燃料-氧的混合物之下的高压在一个水冷却的燃烧室。 该过程使用一定数量的燃料类型，包括气体燃料(如丙烷、乙烯、丙烯、丁烷、乙炔和氢)、液体燃料(如煤油、石蜡、或 异构烷烃的配方)，和混合动力的组合。 增加的压力所产生的燃烧反应，并结合的几何收敛散膨胀喷嘴，创建一个超音速的气体喷射为特征的高颗粒的速度和控制传热源材料。

起始材料，通常在粉形式，是引入到气流中的任何一轴向通过燃烧室，或向在喷嘴内部部分。 在运输过程中的衬底，粉颗粒受到同时进行快速的加速和控制暖气，影响了该部件的表面与高动能量和热量的输入。 这种结果在密涂料与高凝聚力和良好的显微结构的性质。

CTS2000超音速-GF/-LF系统平台

该CTS2000超音速-GF和-如果系统整合的先进自动化架构的基础上，西门子TIA的门户网站或三菱GX工作的工程的平台。 人类-机器的接口(人机)设计为便于操作利用一个直观的操作者的工作流程，这可确保高度的用户核准从目前的初始试运行。

系统的设计符合严格的工业安全标准。 闭循环过程的控制是通过连续监测参数使用高精密传感器阵列和控制器，这确保了卓越的进程的稳定性和质量保证期间涂层的应用。 先进的远程接口有助于全面双向传送数据之间的超音速系统和辅助机器人或多轴控制系统。 在高速火焰喷射系统设计一个模块化的平台和提供多种配置，以满足不同生产的需求和应用的要求。
